Best Shopify Hat Designer Apps in 2026: 7 Apps for Embroidered Caps, Truckers and Beanies

The short answer: hat designer apps compared

"Per-sale fee" means a charge on top of the monthly plan for each personalized order.

For the wider category beyond hats, our roundup of the best Shopify product designer app picks covers apparel, photo gifts and POD in one place.

The 7 best Shopify hat designer apps, reviewed

1. PIMW Product Personalizer

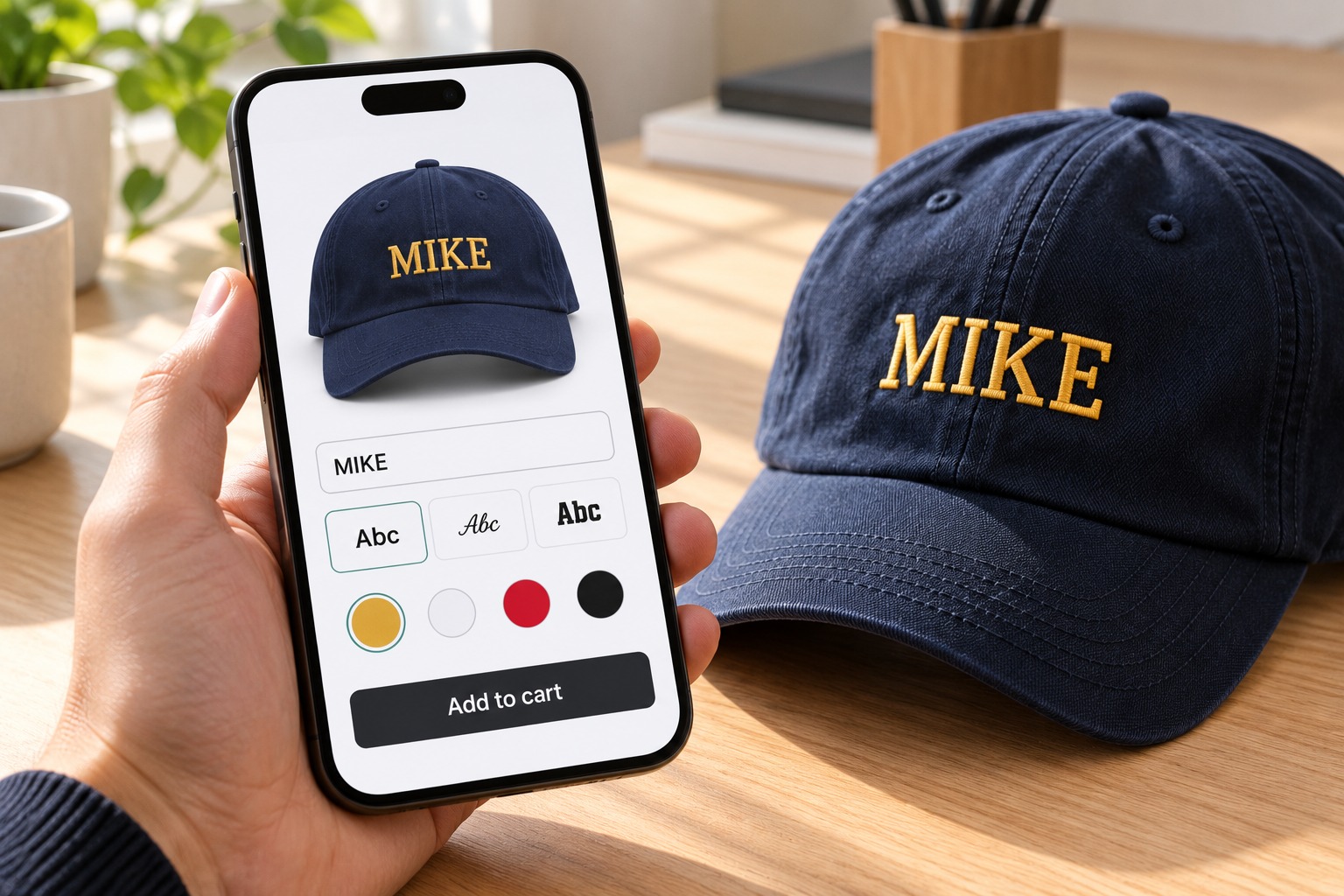

PIMW adds a live preview to your existing product photo. The customer types "MIKE" or "EST. 2019", picks from 35+ fonts and a thread color swatch, and sees it on the front panel of the cap before adding to cart. Character limits matter here, because a front panel only fits so many letters.

Pricing at the time of writing: Free (up to two personalized products, no credit card), Basic $7.99/mo, Pro $13.99/mo and Unlimited $24.99/mo, with no per-sale fee. Logo and file upload, photo upload and conditional logic start on Pro, so an "upload your logo" cap needs Pro. Add-on fees, such as a back-of-cap text charge, show up as a separate line in the cart.

The personalization is saved on the order as line-item properties, so your embroiderer or POD partner can read "Front text: MIKE, Thread: Gold, Font: Varsity" straight from the order. PIMW connects with Printful, Printify and Gelato.

Where it's weaker: it's a 2D preview, not a 3D cap. It doesn't digitize logos, read stitch files or carry a built-in thread library, so you set up your own thread swatches and handle digitizing with your producer. It also has far fewer reviews than Zepto or Teeinblue, 10 at the time of writing.

2. Zepto Product Personalizer

Zepto is the most-reviewed app here, with a 4.9 rating from 1,417 reviews in October 2026. It offers swatches, dropdowns, text and monogram inputs, custom fonts, upload fields, conditional logic, option pricing and live previews, which covers most embroidered cap listings.

Plans run Starter $9.99/mo (up to 50 products, 100 custom orders), Basic $19.99/mo, Pro $29.99/mo and Unlimited $49.99/mo, with a 15-day trial. The order caps are the thing to watch. A busy cap shop doing team orders can outgrow 100 custom orders a month quickly.

Reviewers keep praising its support, and several mention embroidery and jewelry stores. It's a safe, well-trodden pick.

3. Zakeke

Zakeke is the app to look at if you want the shopper to rotate a cap in 3D. The listing covers 2D and 3D design tools, AR try-on, AI-powered previews that include embroidery and stitching effects, a template library and automatic print-ready files. It lists integrations with Printful, CustomCat and Zapier.

Starter is $69.90/mo with a 1.9% fee on customized sales and a 10-product limit, Grow is $129.90/mo with 1.7%, and Scale is $299.90/mo with 1.5%. There's a 14-day trial, and the rating was 4.5 from 101 reviews.

On a $35 cap, 1.9% is about 67 cents per order. Fine for a premium cap brand where the 3D view sells. On a $22 name cap it hurts, and our PIMW vs Zakeke comparison runs the numbers at different volumes.

4. Customily

Customily is built around templates. The listing names hats and embroidery among supported product types, alongside text, photo and AI filter tools, Canva imports, automatic file generation in multiple formats and integrations with Printify, Printful, Gelato, ShineOn and CustomCat.

The Customily plan is $49/mo plus $0.10 to $1.00 per order item, with a 9-day trial and a free plan for development stores only. Rating: 4.9 from 274 reviews.

If you sell dozens of cap designs, each with a name slot, the template library saves real setup time. The per-item fee adds up as you grow, and our PIMW vs Customily breakdown compares it with a flat plan.

5. Teeinblue

Teeinblue is a POD-first personalizer with a 4.9 rating from 375 reviews. Its listing names hats and embroidery among supported products and lists direct connections to Printify, Printful, merchOne, ShineOn, Gelato, Dreamship, Printway, Printbelle and Prodigi.

The Blue plan costs $49/mo plus $0.10 to $0.40 per order item, and the first 100 orders each month are fee-free. There's a 14-day trial.

It has the longest provider list here, which in-house embroiderers won't need.

6. Inkybay

Inkybay lists embroidery next to DTF, screen print, DTG and sublimation, and its pricing engine can change the price based on design colors and size. That's handy for embroidery, where more thread colors usually cost more to produce.

Plans run Starter $19.99/mo, Advance $49.99/mo, Professional $99.99/mo and Unlimited $249.99/mo, with a 21-day trial. Rating was 4.5 from 169 reviews. Exports are listed as PDF, SVG, JPG and PNG, so you still hand those to a digitizer for stitching.

One reviewer reported slow backend downloads of large customer uploads. That's one seller's report, but test a big logo file during your trial.

7. Kickflip

Kickflip is a product configurator more than a text personalizer. It previews products from multiple angles, lets customers swap components and applies colors to parts of the product live. For a two-tone trucker where the shopper picks panel, mesh and brim colors, that fits well.

Pricing is the Scale plan at $59/mo plus 1.95% to 0% per custom product sale, with a 14-day trial and paid add-ons for white-label and price quotes. It had 4.4 stars from 135 reviews, including 10 one-star reviews, so read the recent ones. We cover the fee math in our PIMW vs Kickflip comparison.

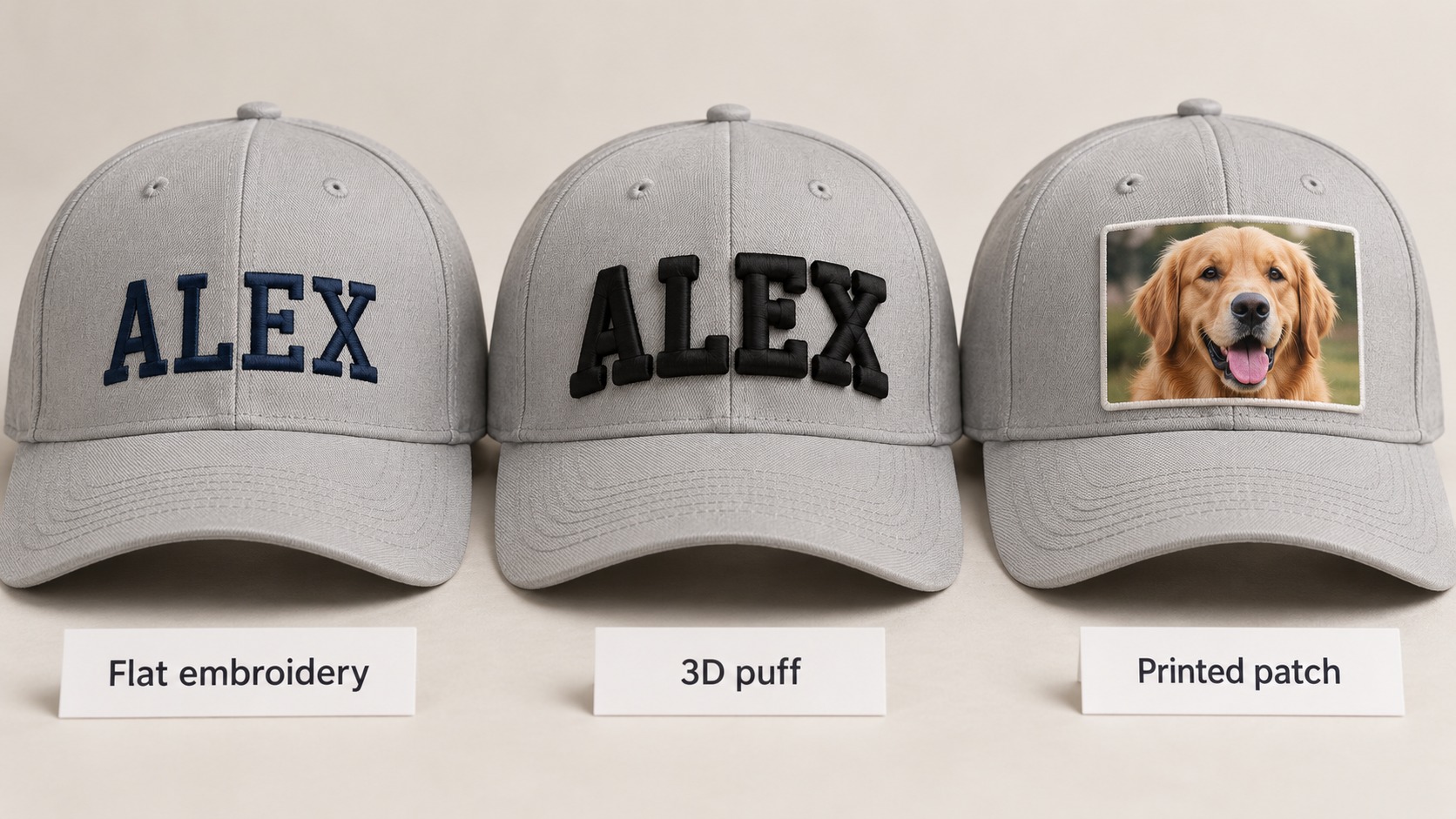

Embroidery or print: which one your hats need

Most custom hats on Shopify are embroidered, and shoppers expect that on a dad cap or snapback. Print still has a place, mostly through patches and transfers for photos, gradients and fine detail.

Printful and Printify both describe embroidery as the better fit for logos, symbols and short text, and print for illustrations, gradients and photos. So "upload a photo of my dog" on a hat means a printed patch, not stitches. Your design app barely changes. The file your producer needs and your product-page limits do.

Digitizing, stitch counts and puff: what trips up hat orders

What digitizing is and who does it

Digitizing converts artwork into a stitch file an embroidery machine can read, with the stitch types, direction, density and underlay worked out. A PNG logo can't go straight onto a cap. Someone has to digitize it first.

Who does it depends on how you fulfil. Printify says its print providers handle digitization of uploaded logos at no extra cost. Printful's help center lists a one-time digitization fee per new design, around $6.50 for a standard design at the time of writing, less for text-only and side or back placements, and free when you order 25 or more embroidered items at once. If you use a local embroiderer, expect a setup charge: one digitizing service puts typical prices at $10 to $30 per design depending on complexity and stitch count.

Printful notes that hat files differ from apparel files, because a curved front panel needs different stitch direction and density. Our embroidery for POD guide covers digitizing costs and limits in more depth.

Size and stitch limits on a front panel

A front panel is small. Printful's hat guide gives these rough embroidery areas:

• Structured caps and snapbacks: 4 to 5 in wide, up to 2.25 in tall
• Shopify Options for Custom Hats + Caps: Complete Setup Guide, 1.75 to 2 in tall
• Side placements: 2 to 2.5 in wide, 1 to 1.25 in tall
• Back placements: 2.25 to 3 in wide, 0.75 to 1 in tall

The same guide puts the maximum stitch count typically around 15,000 stitches and the minimum letter height at about 0.25 in. In practice, that means short text. A 6 to 10 character limit on the front and 3 to 4 on a side initial is a sensible place to start, then adjust after your first sew-outs.

3D puff embroidery

Puff embroidery stitches over foam so letters stand up off the cap. Printful offers it only on hats, prices it above standard embroidery and needs a separate digitized file for it. Its guidance asks for strokes between 0.2 and 0.5 in wide and uppercase block letters, and it can't share a print area with flat embroidery.

So if you offer puff as an option, limit the fonts to two or three bold block styles and lower the character count. A thin script in puff comes out as a lumpy mess.

Thread colors

Printify's guide mentions 14 supported thread colors on its embroidery machines, with more colors possibly costing extra, and Printful's hat guide says designs are generally limited to six thread colors.

Show thread colors as real color swatches, not a dropdown of names. "Old gold" and "athletic gold" look the same in text and very different on a navy cap. Match your swatches to what your producer actually stocks.

Placements and hat styles on Shopify

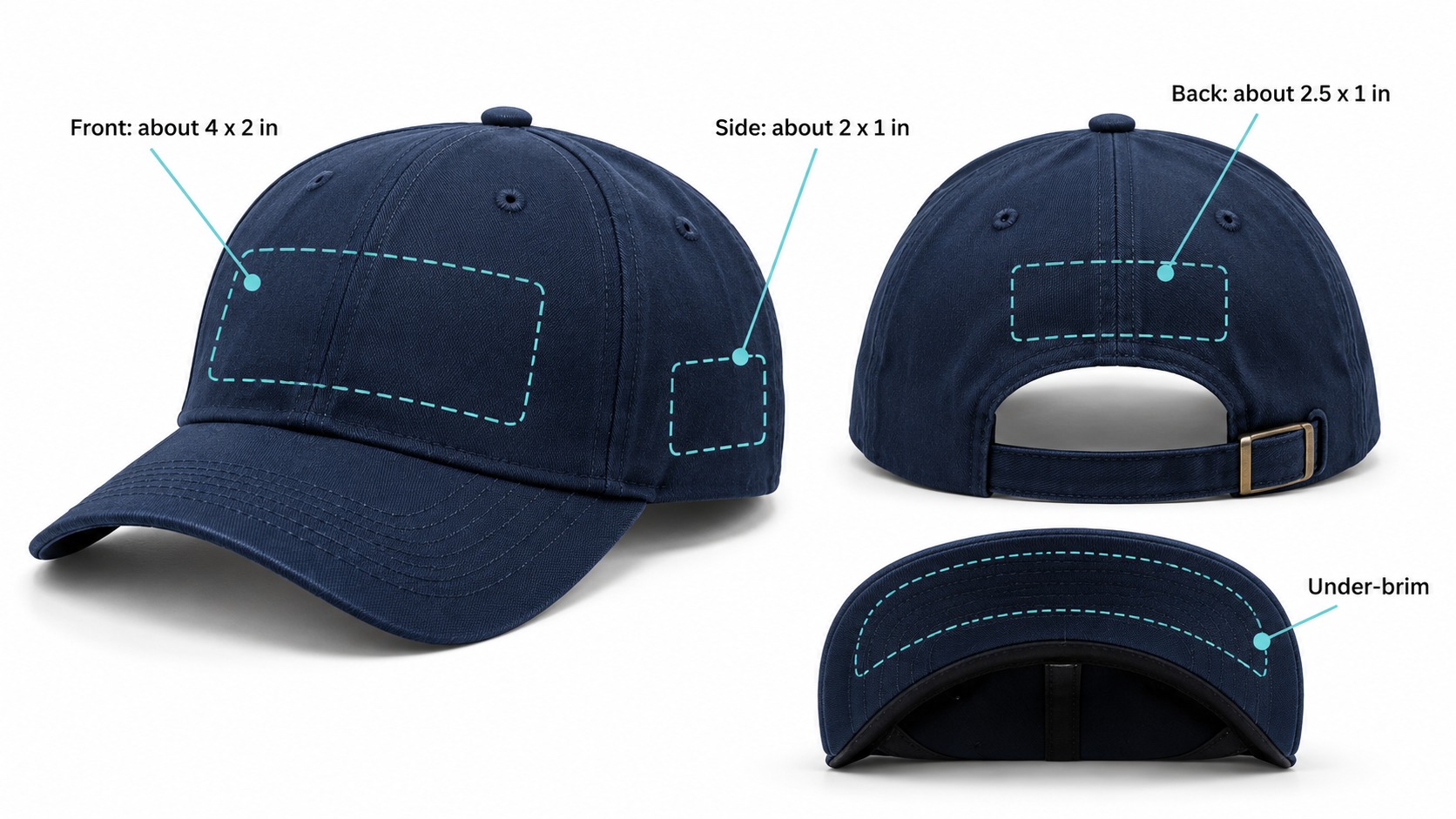

Front, side, back and under-brim

• Front panel: the main design. Name, logo or short phrase.
• Side: a small initial, number or year, usually on the wearer's left.
• Back: above the strap or closure. Good for a name on team caps.
• Under-brim: a hidden message or small print some shops offer. Check your producer offers it before you list it.

Make the front required and the rest optional. Each optional placement can carry its own fee, and with conditional logic the text box only appears once the shopper ticks "Add back text".

Hat styles as Shopify variants

Use Shopify variants for the things that change the blank: style (dad cap, trucker, snapback, beanie, bucket hat) and color. Shopify allows up to three options and 2,048 variants per product, which is plenty for style, color and size on fitted caps.

Keep personalization out of variants. Text, thread color, font and placements belong in the personalizer as line-item properties, so you don't multiply SKUs. Our guide on how to add variants on Shopify walks through the style and color setup.

Print-on-demand options for embroidered hats

Printify's hat catalog covers baseball caps, dad hats, truckers, structured caps, beanies, bucket hats and organic options, embroidered by its print providers. Its own personalization feature works on Shopify, Etsy and TikTok Shop, with text, image uploads and live previews. Every personalized order needs your approval before production, and Printify says embroidery digitization can take up to 36 hours, so build that into your shipping times.

Printful offers flat embroidery, 3D puff on hats and its own digitization service with the fees above. Many sellers pair it with a separate personalizer app that captures the customer's text on the product page and passes it along with the order. Our post on connecting Printful to Shopify personalization shows that flow step by step.

For a provider-by-provider look at hat blanks, see our guide to the best print on demand for hats.

Selling hoodies alongside your caps? The same apps show up in our roundup of the best Shopify hoodie designer apps, with a few apparel-specific differences.

What to offer: fields, options and upcharges

Here's a lean setup for most embroidered cap orders. The prices are suggestions to test, not industry standards.

The logo upload fee is the one to get right. If your producer charges a one-time digitization fee per new design, a logo upcharge in that range covers it on the first order. Our guide on how to add upcharge fields covers pricing these without creating extra variants.

How to set up a hat designer on Shopify, step by step

Here's the setup for an embroidered dad cap. The first product takes about 15 minutes in PIMW, and the steps are similar in most apps.

1. Create the product with a clean, front-facing photo of each cap color so the preview lines up.
2. Add style and color as Shopify variants.
3. Install the personalizer and add its app block to the product template in the theme editor.
4. Draw the text area over the front panel on the photo, sized to your producer's embroidery area.
5. Add the front text field with a character limit, then three to five fonts you've seen stitched.
6. Add thread color swatches that match your producer's thread stock.
7. Add optional side and back text fields with their fees, shown only when ticked.
8. On Pro or higher, add a logo upload field with a note that logos are digitized before stitching.
9. Connect your POD partner, or set up how your in-house team reads the order.
10. Place a test order and check the line-item properties show text, font, thread and placement clearly.

A worked example with numbers

Say an embroidered dad cap costs you $16 from your producer, including shipping to the customer. These are example figures, so swap in your own.

• Base price: $32 for a cap with front text. Margin before fees: $16.
• Customer adds back text (+$5) and puff on the front (+$5). Order total: $42.
• If puff adds $3 to your cost, your margin is $16 + $5 + $5 - $3 = $23.
• A flat-priced app takes nothing from that. A 1.9% fee app takes about 80 cents.

Small numbers per order, but on 500 caps a month that's around $400 in fees. Our product personalizer app pricing comparison does this math for every major app.

Logo files, team orders and beanies

• Ask before charging for digitizing. Next to the logo upload, add a question like "Is your file ready to stitch?" With conditional logic, the digitizing fee appears only on a "No", so a customer who already has a stitch file (such as DST or EXP) from an earlier order isn't charged twice. Show the fee on the product page, not as a surprise at checkout.
• Team orders as separate line items. Say a coach wants 14 navy caps with the team logo on the front and each player's number on the back. The logo is uploaded and digitized once. The coach adds each cap to the cart with its own number in a two-character "Back text" field, so every cap arrives as its own line item that your embroiderer can work down one by one.
• Give beanies their own limits. A beanie cuff is wider and shorter than a cap front, so don't reuse the cap's text area and character limit. Set the limit per style.
• Thread swatches from photos. Build swatches from photos of your producer's real thread chart rather than flat screen colors, since thread looks different from a hex color.

How to choose the right hat designer app

• Name or initials on a cap, plus thread color: PIMW Product Personalizer or Zepto. Flat monthly price, live preview, no per-sale fee.
• Upload a company or team logo: any app with file upload works, PIMW from Pro. The digitizing step happens with your producer either way.
• Rotate the cap in 3D or preview stitch texture: Zakeke.
• Pick the color of each part of a two-tone trucker: Kickflip.
• Dozens of templated designs sent to POD: Customily or Teeinblue.
• Price by thread color count and size: Inkybay.

Whatever you pick, order one test cap with the longest name you allow, your thinnest font and your busiest thread combination. If it looks good stitched, your limits are right. If you want more background, our explainer on what a product personalizer is covers how these apps work under the hood.

For embroidery-specific setups, our guide to the best Shopify embroidery personalizer goes deeper.

And if you want the feature-by-feature view for caps alone, our page on the best Shopify hat and cap personalizer covers snapback vs dad cap setups.
